Bestekteksten
230V Centrales

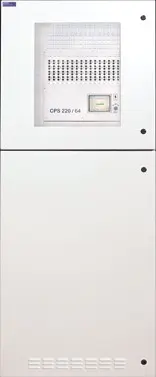

230V Centraal Noodverlichtings Systeem CPS 220-64.0
Centraal Noodverlichtingssysteem conform: NEN-EN 50171; NEN-EN 50172 en NEN 1010
Fabrikaat | INOTEC Zelf-testend 230V Centraal Noodverlichtingssysteem. |
---|---|
Type | CPS220-64.0 |
Uitvoering | Staande kast. |
Nominaal vermogen (W) | 1,2kVA / 5,5kVA / 11kVA / 22kVA |
Ingangsgrootheid |
|
Uitgangsgrootheden |
|
Max. inrush current per circuit | 250A / 500 μs |
Omgevingstemperatuur (°C) | 20 °C |
Beschermingsgraad (NEN-EN-IEC 60529+a00) (IP) |
|
Behuizing afmetingen (hxbxd) (mm) |
|
Materiaal kast/deur | gelakt plaatstaal |
Kleur (RAL) | 7035 |
Gewicht (kg) | afhankelijk van configuratie behoefte |
Samenstelling modules afgaande groepen | 4 x 2A / 2 x 4A / 1 x 6A |
Aansluitvermogen per groep (W) | 432 / 864 / 1296 |
Bedienings-/sturing |
|
Programmeerbaar stuurdeel |
|
Status signalering / registratie |
|
Communicatie |
|
Lader |
|
Batterij |
|
Bewaking Batterijen |
|
Onderstation type CPU-SB |
|

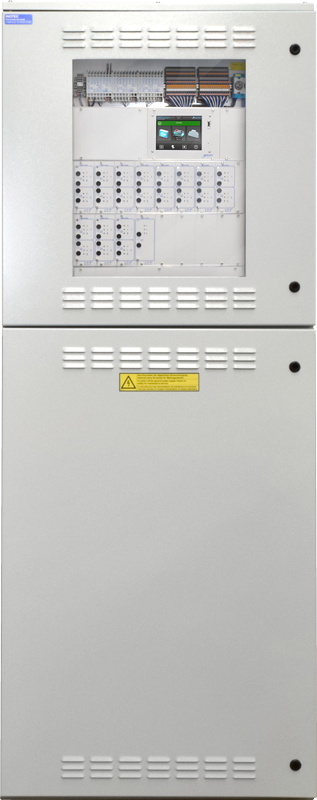

230V Centraal Noodverlichtings Systeem CPS220-48.1
Centraal Noodverlichtingssysteem conform: NEN-EN 50171; NEN-EN 50172 en NEN 1010
Fabrikaat | INOTEC Zelf-testend 230V Centraal Noodverlichtingssysteem. |
---|---|
Type | CPS220-48.1 |
Uitvoering | Staande kast. |
Nominaal vermogen (W) | 1,2kVA / 5,5kVA / 11kVA / 22kVA |
Ingangsgrootheid |
|
Uitgangsgrootheden |
|
Max. inrush current per circuit | 250A / 500 μs |
Omgevingstemperatuur (°C) | 20 °C |
Beschermingsgraad (NEN-EN-IEC 60529+a00) (IP) |
|
Behuizing afmetingen (hxbxd) (mm) |
|
Materiaal kast/deur | gelakt plaatstaal |
Kleur (RAL) | 7035 |
Gewicht (kg) | afhankelijk van configuratie behoefte |
Samenstelling modules afgaande groepen | 2 x 3A / 1 x 6A |
Aansluitvermogen per groep (W) | 646 / 1296 |
Bedienings-/sturing |
|
Programmeerbaar stuurdeel |
|
Status signalering / registratie |
|
Communicatie |
|
Lader |
|
Batterij |
|
Bewaking Batterijen |
|
Onderstation type CPU-SB |
|
24V Centrales

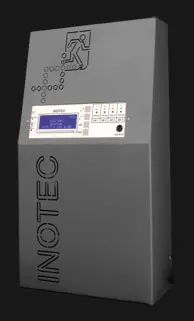

24V Centraal Noodverlichtings Systeem CLS24
Centraal Noodverlichtingssysteem conform: NEN-EN 50171; NEN-EN 50172; EN 50272-2; NEN 1010
Fabrikaat | INOTEC Zelf-testend 24V Centraal Noodverlichtingssysteem. |
---|---|
Type | CLS24 |
Uitvoering | Wandkast |
Nominaal ampèrage (A) bij 1 uur autonomie | 2,7 / 6,6 / 12,0 |
Ingangsgrootheid |
|
Uitgangsgrootheden |
|
Omgevingstemperatuur (°C) | 20 °C |
Beschermingsgraad (NEN-EN-IEC 60529+a00) (IP) | Wandkast: 20 |
Behuizing afmetingen (hxbxd) (mm) |
|
Materiaal wandkast | gelakt plaatstaal |
Kleur (RAL) | 7015 / 7035 |
Gewicht (kg) | afhankelijk van type CLS24 |
Samenstelling modules afgaande groepen | 2 x 3A / 4 x 3A |
Maximaal ampèrage per groep (A) | 3 |
Maximaal aantal armaturen per groep (2 aders voor zowel voeding is data) | 20 |
Bedienings-/sturing |
|
Programmeerbaar stuurdeel |
|
Status signalering / registratie |
|
Communicatie |
|
Lader |
|
Batterij |
|
